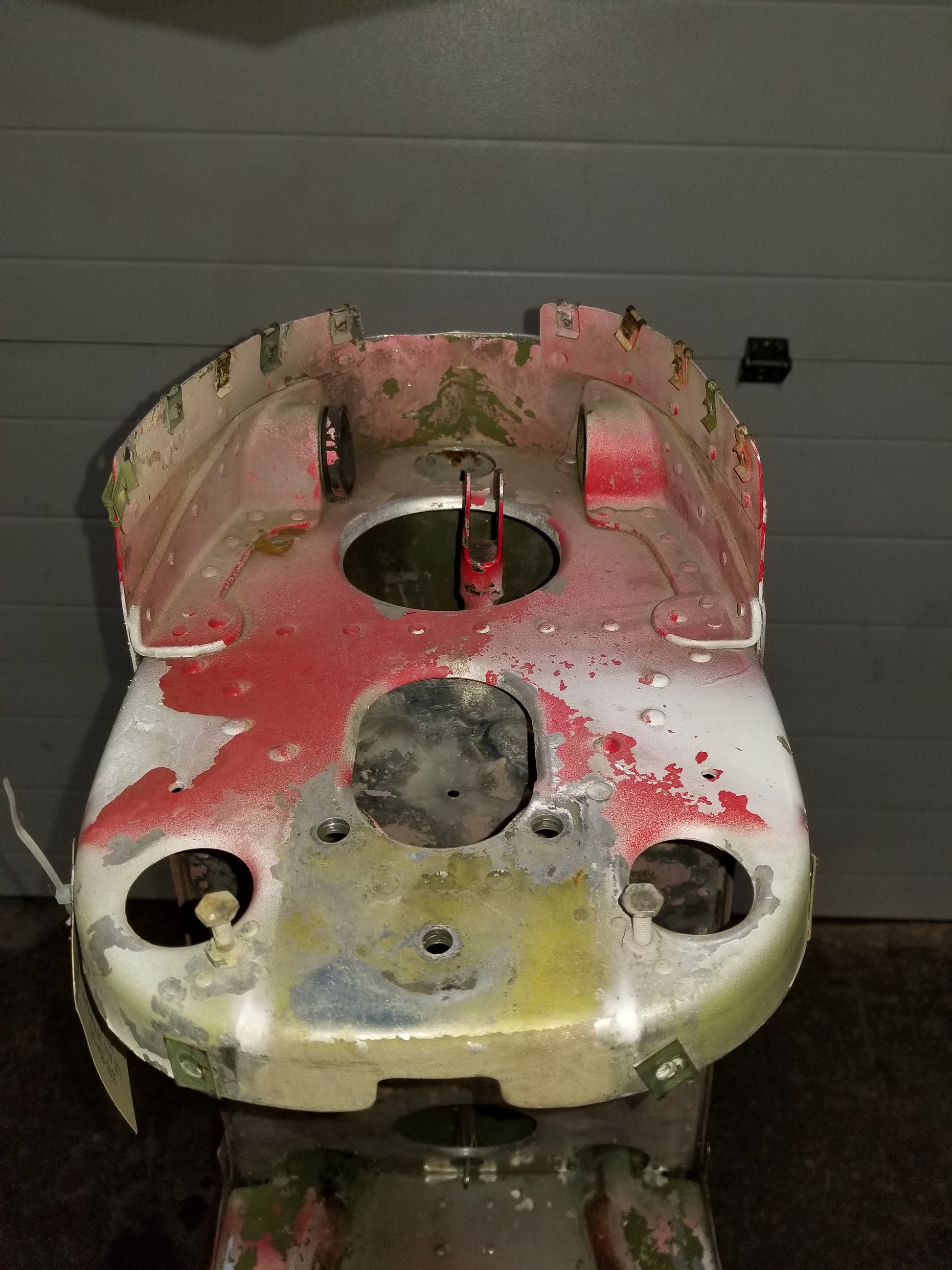

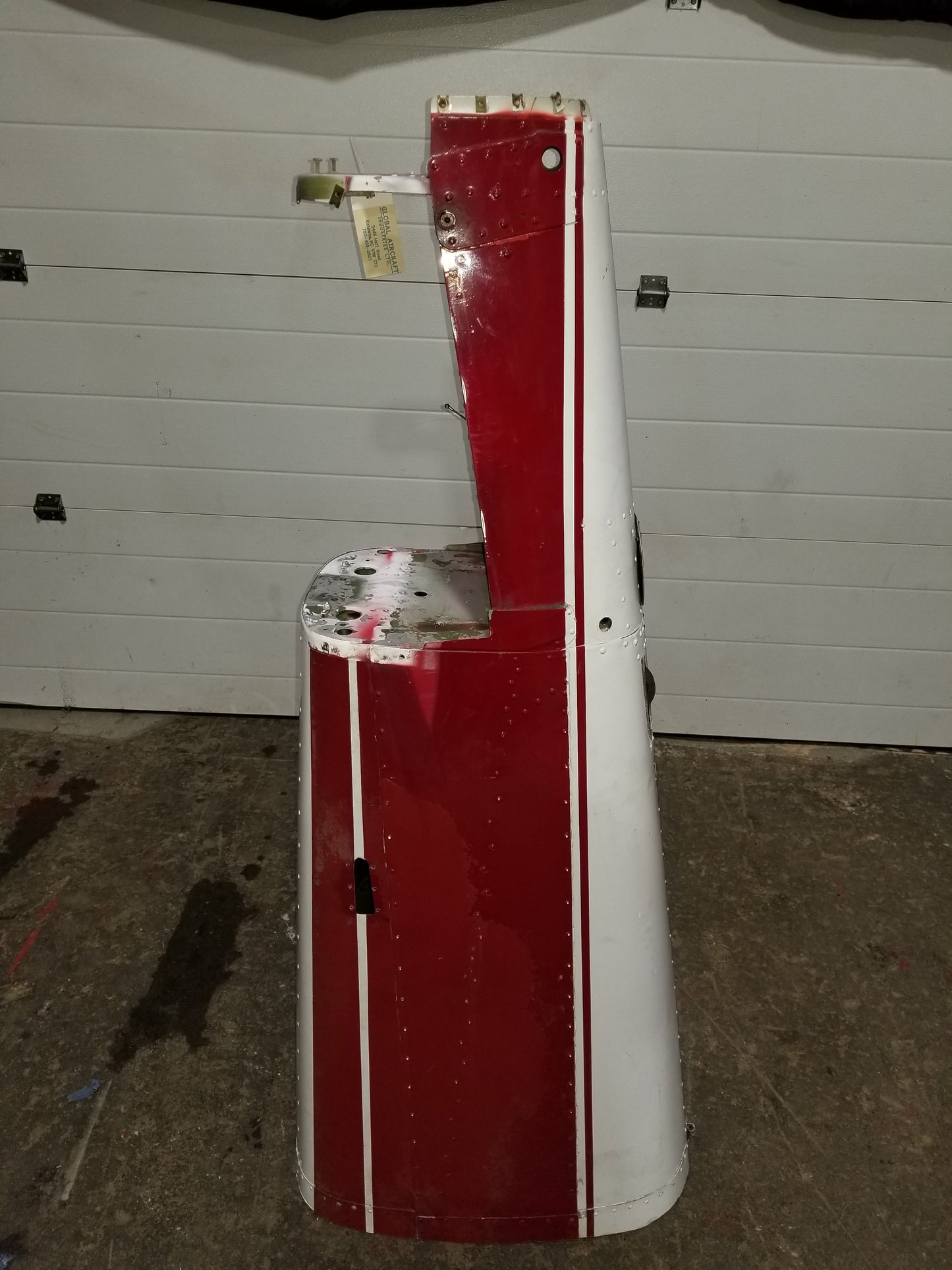

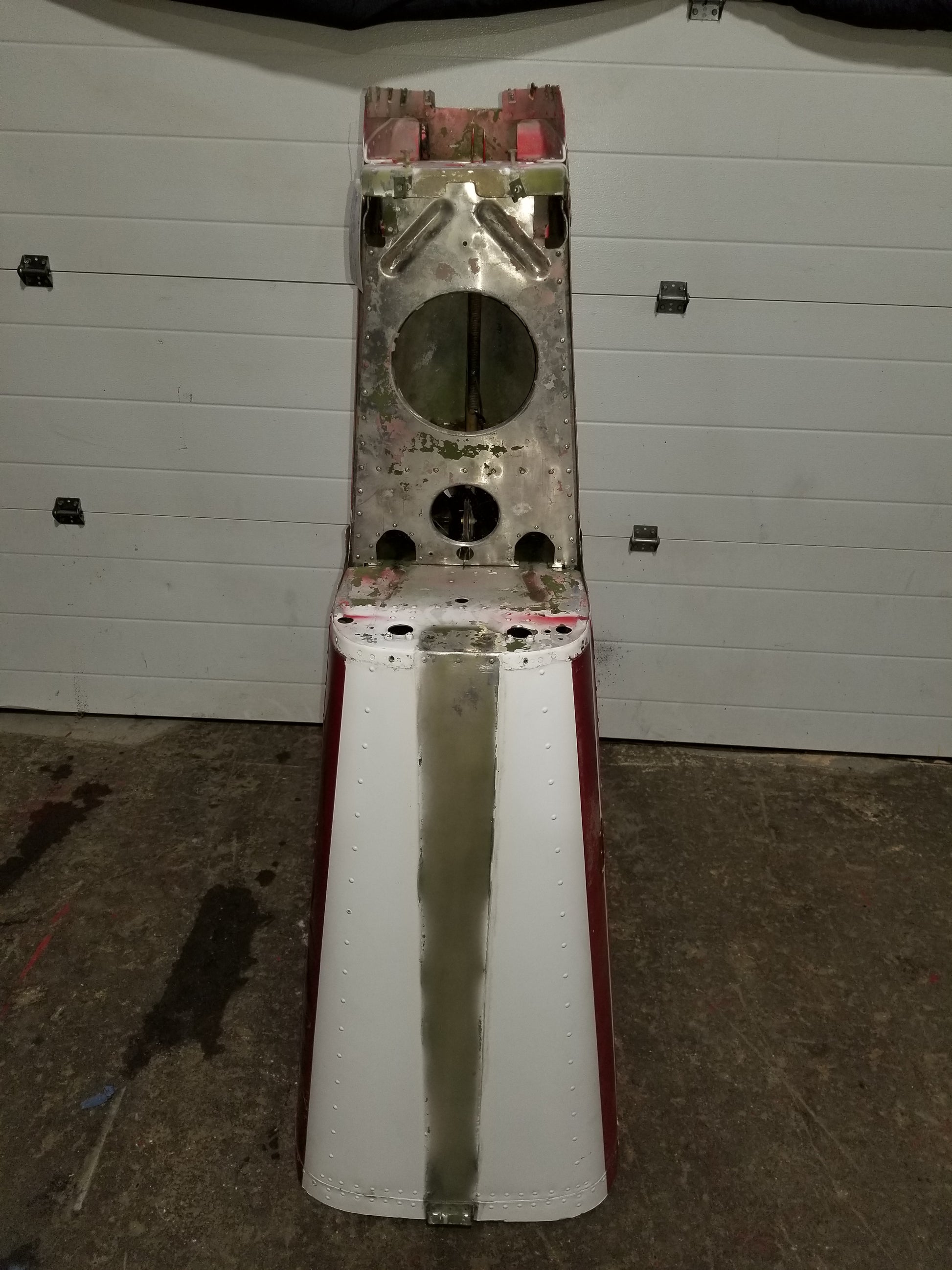

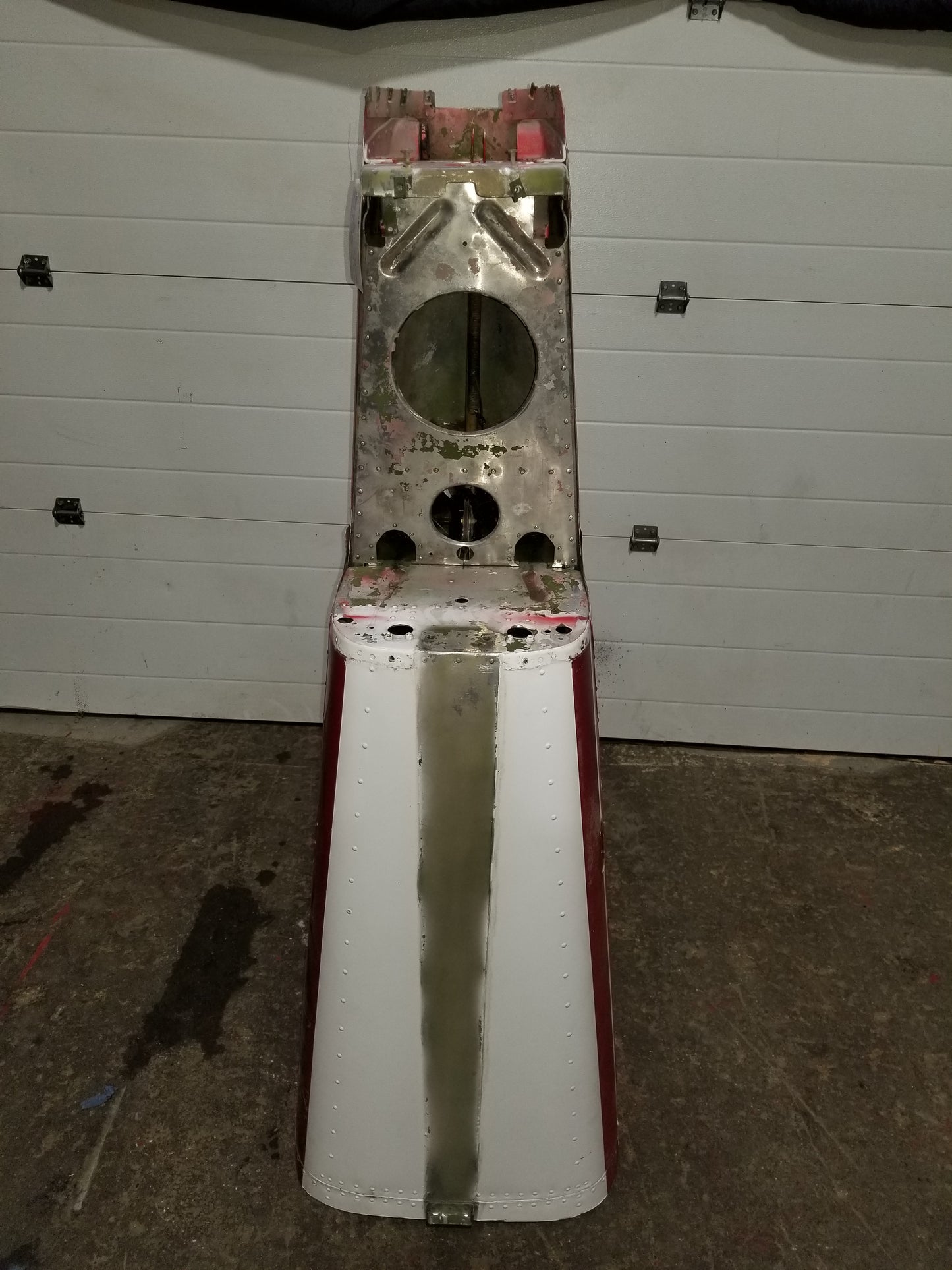

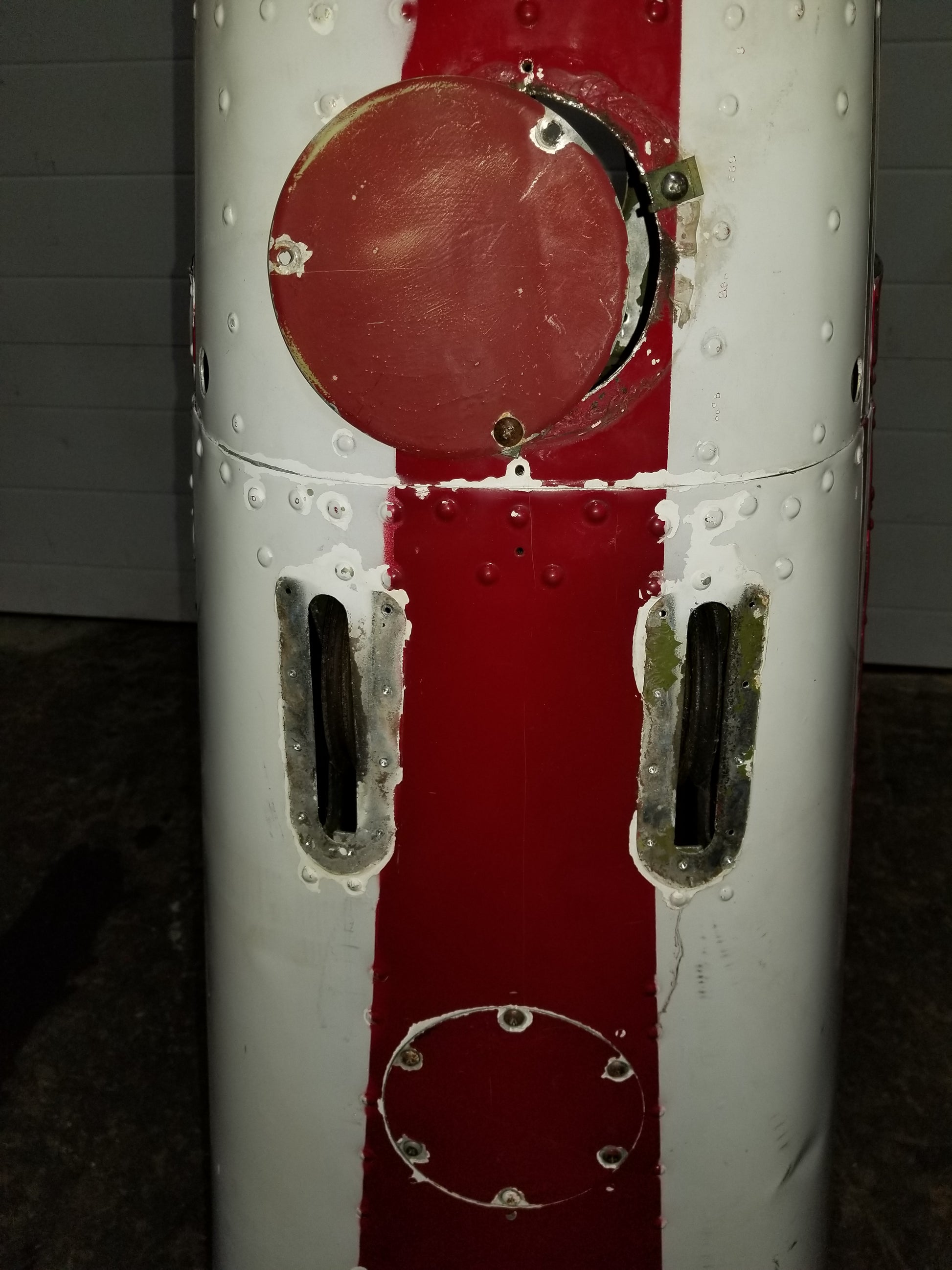

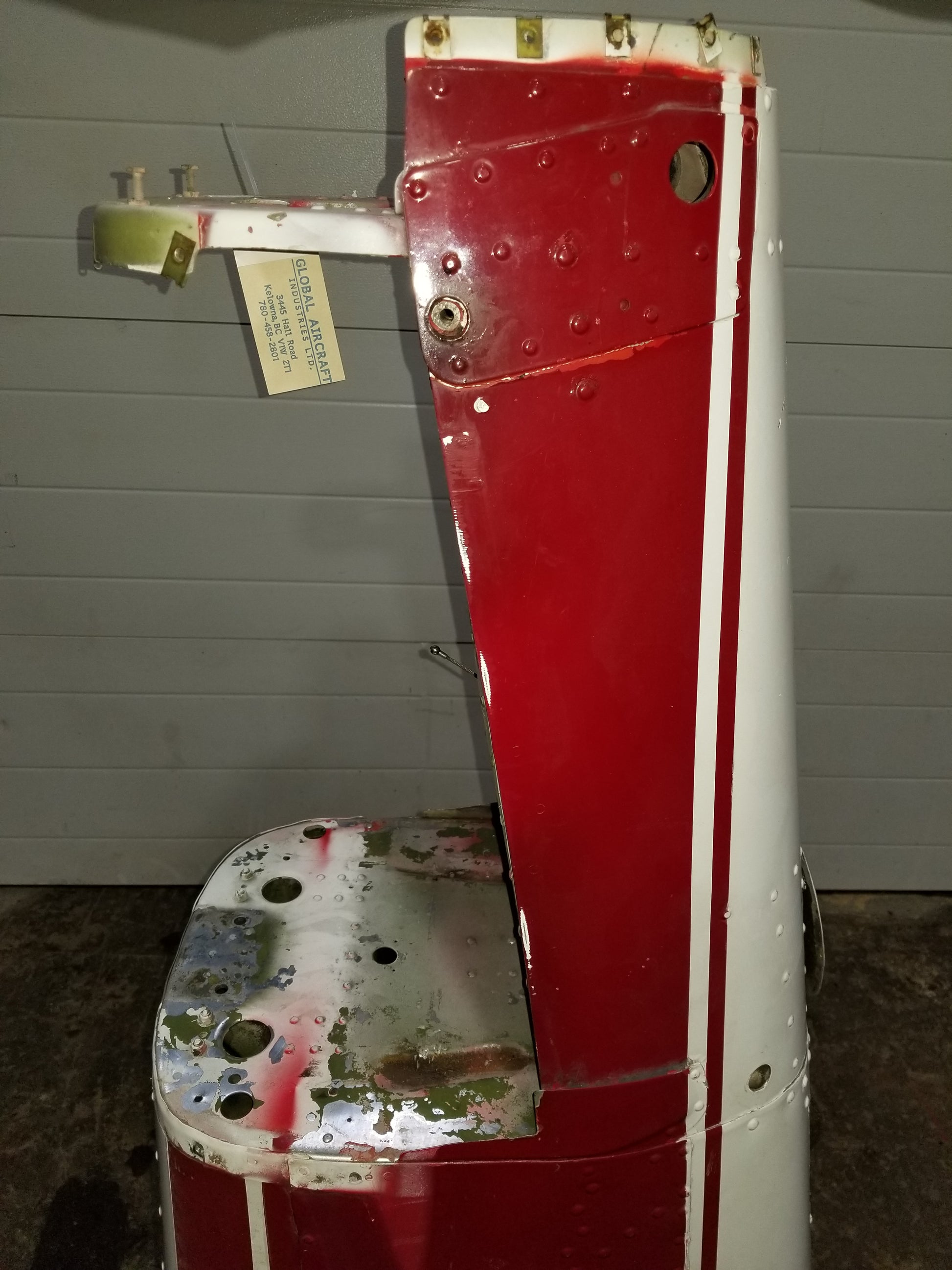

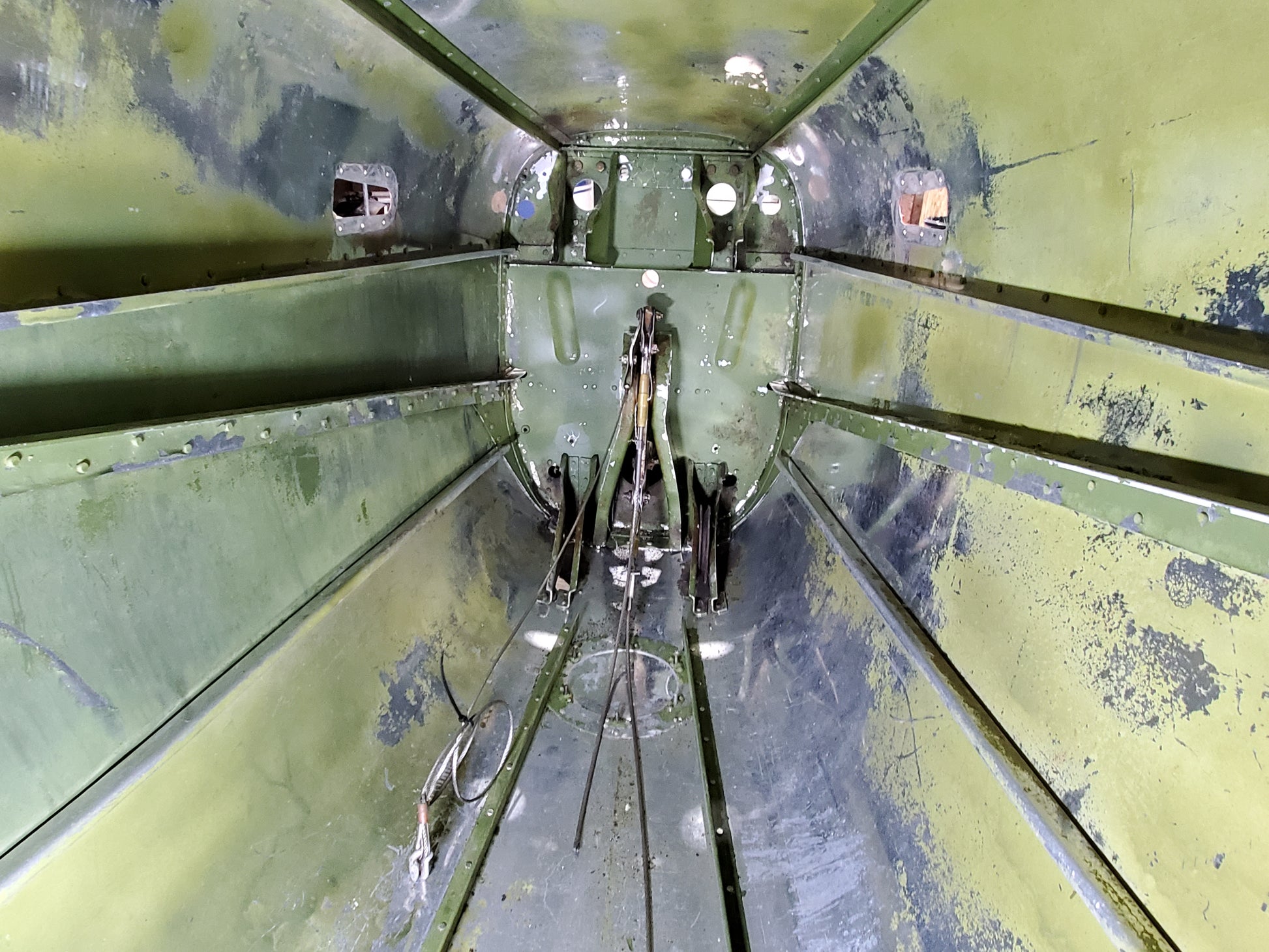

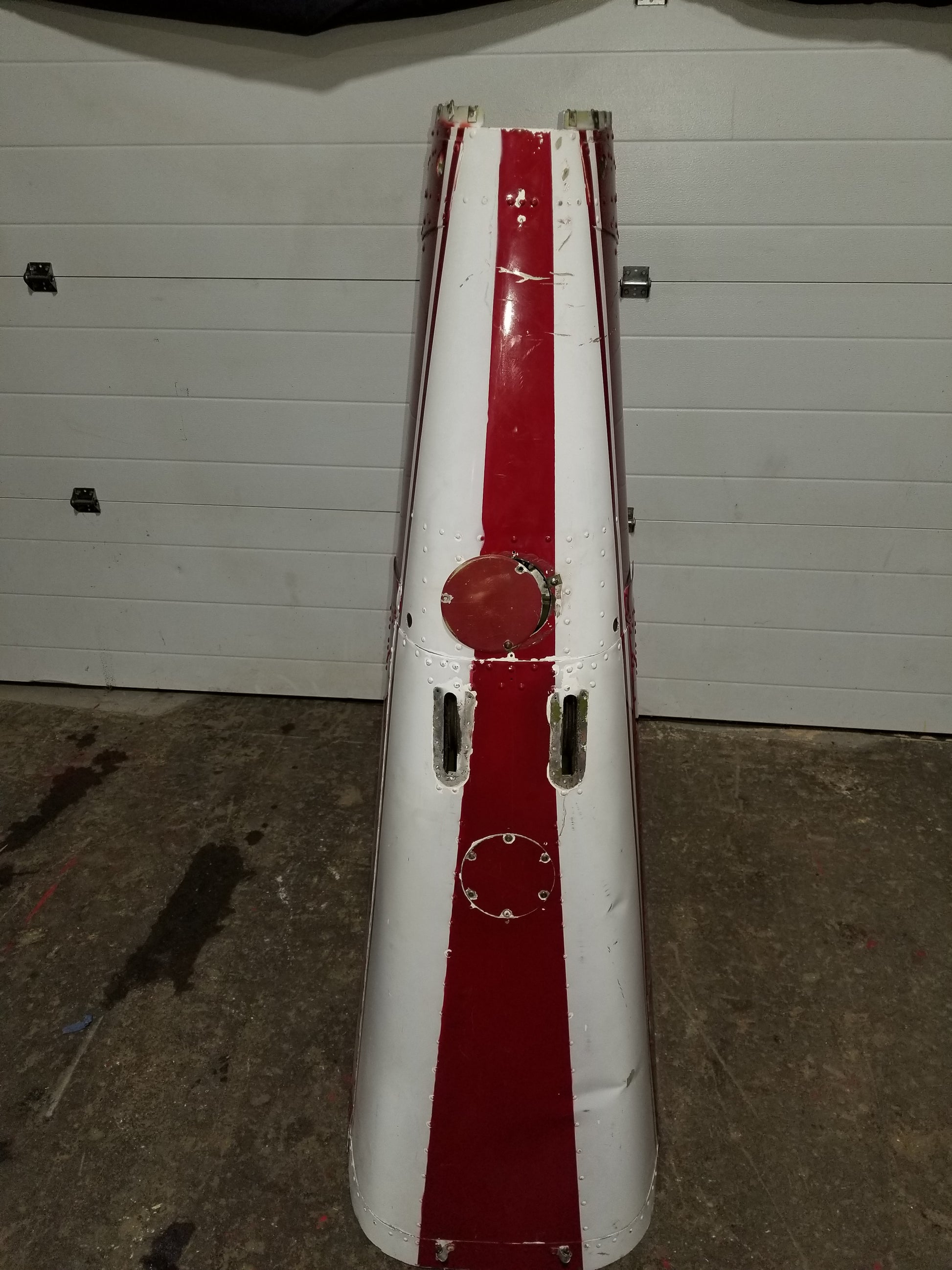

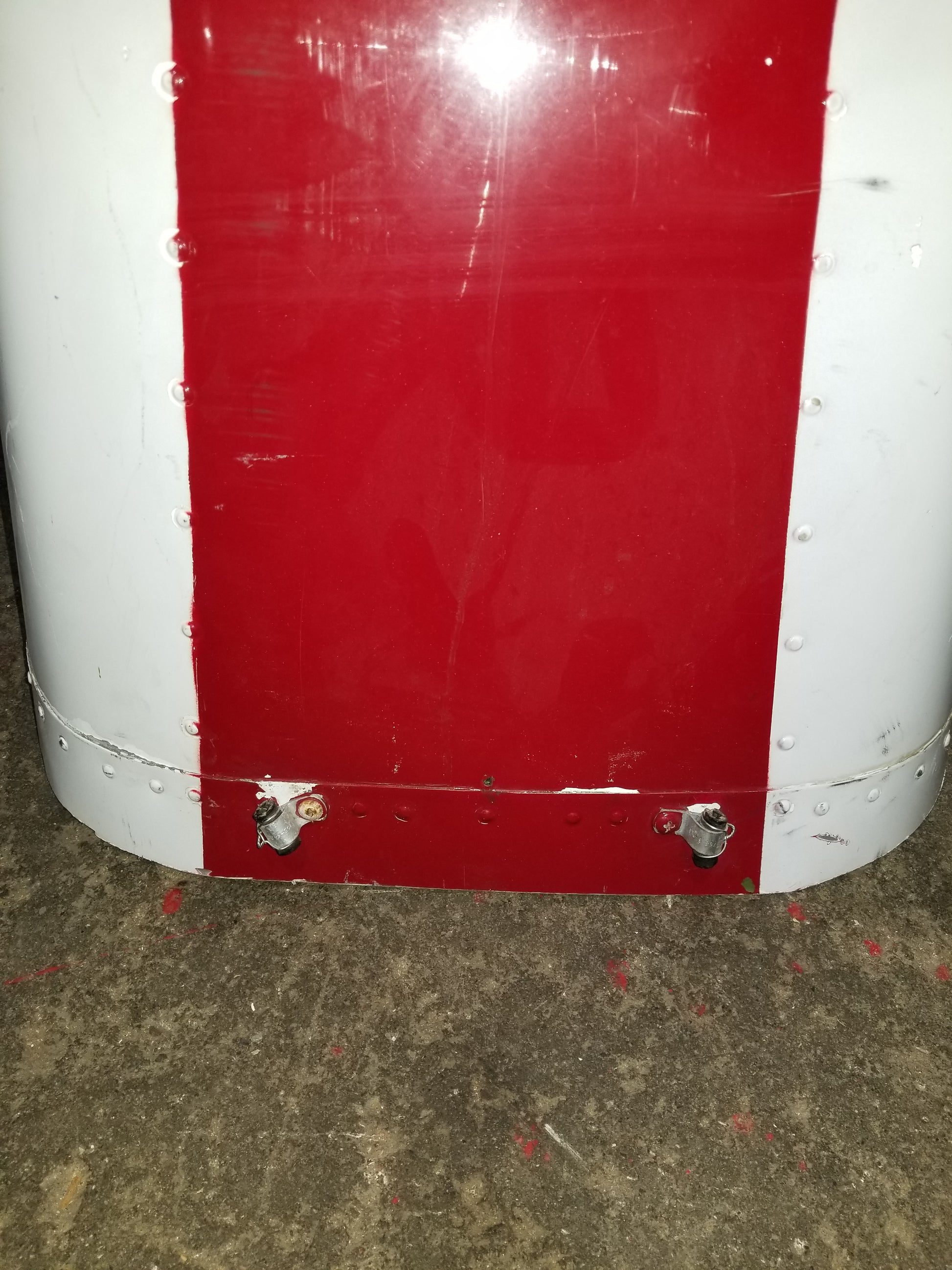

Tail Section - Cessna 185 - C-FCDN

$5,500.00 USD
Retail Price Sale price $5,500.00 USD
Unit price per

Shipping calculated at checkout.

P/N 0791200-7.
Will consider selling individual parts.
Cessna A185E.
Including but not limited to:
- tailcone bulkhead STA. 209.00 - 0712311-7.
- elevator bellcrank rear bracket assy LH 0712306-9.
- elevator bellcrank rear bracket assy RH 0712306-10.
- rudder bellcrank bracket (qnty 2) 0712309-15.

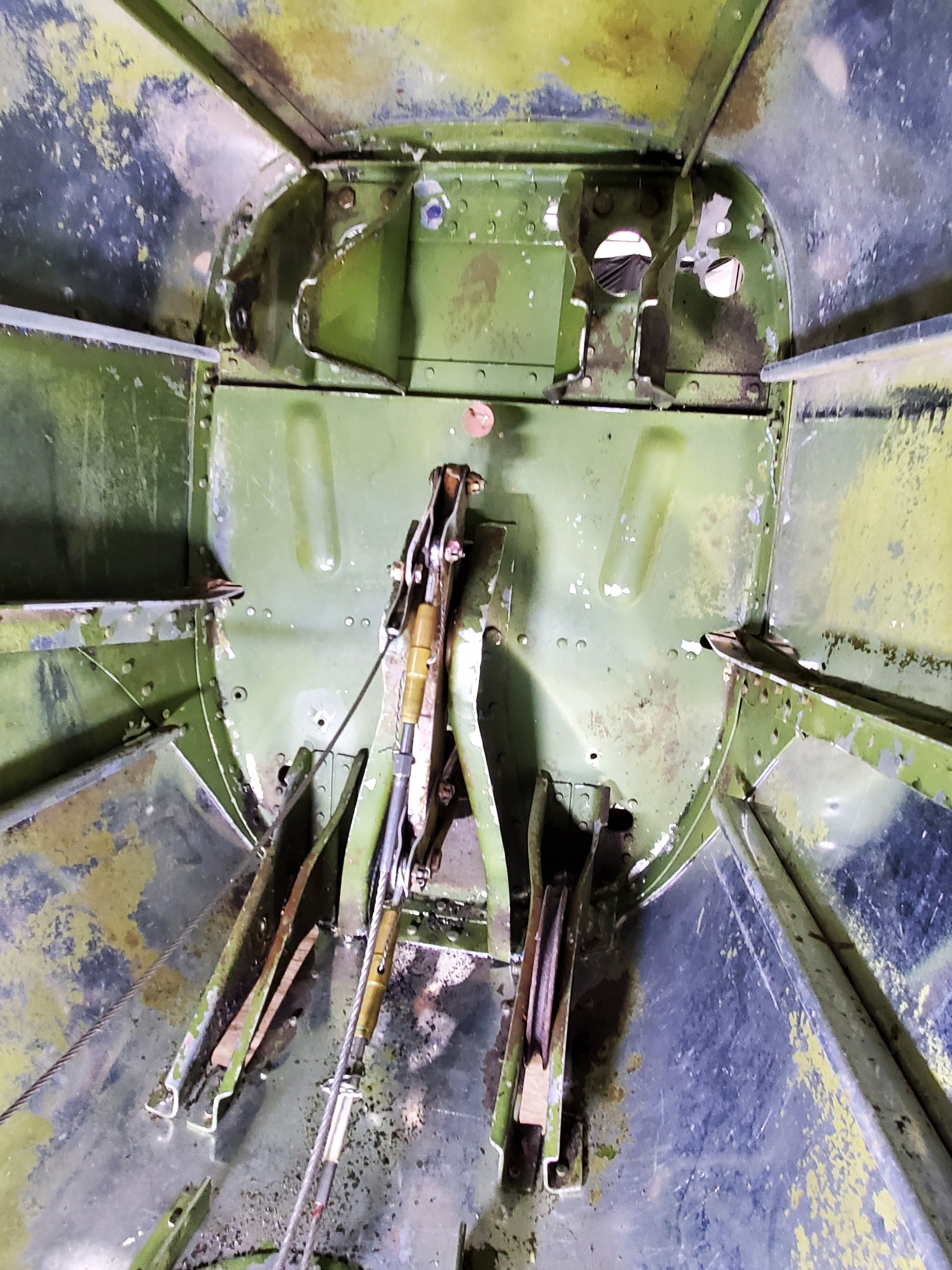

- tailcone bulkhead assy STA. 215.687 - 0712204-5.
- tailgear bracket assy STA. 215.687 - 0712204-4.

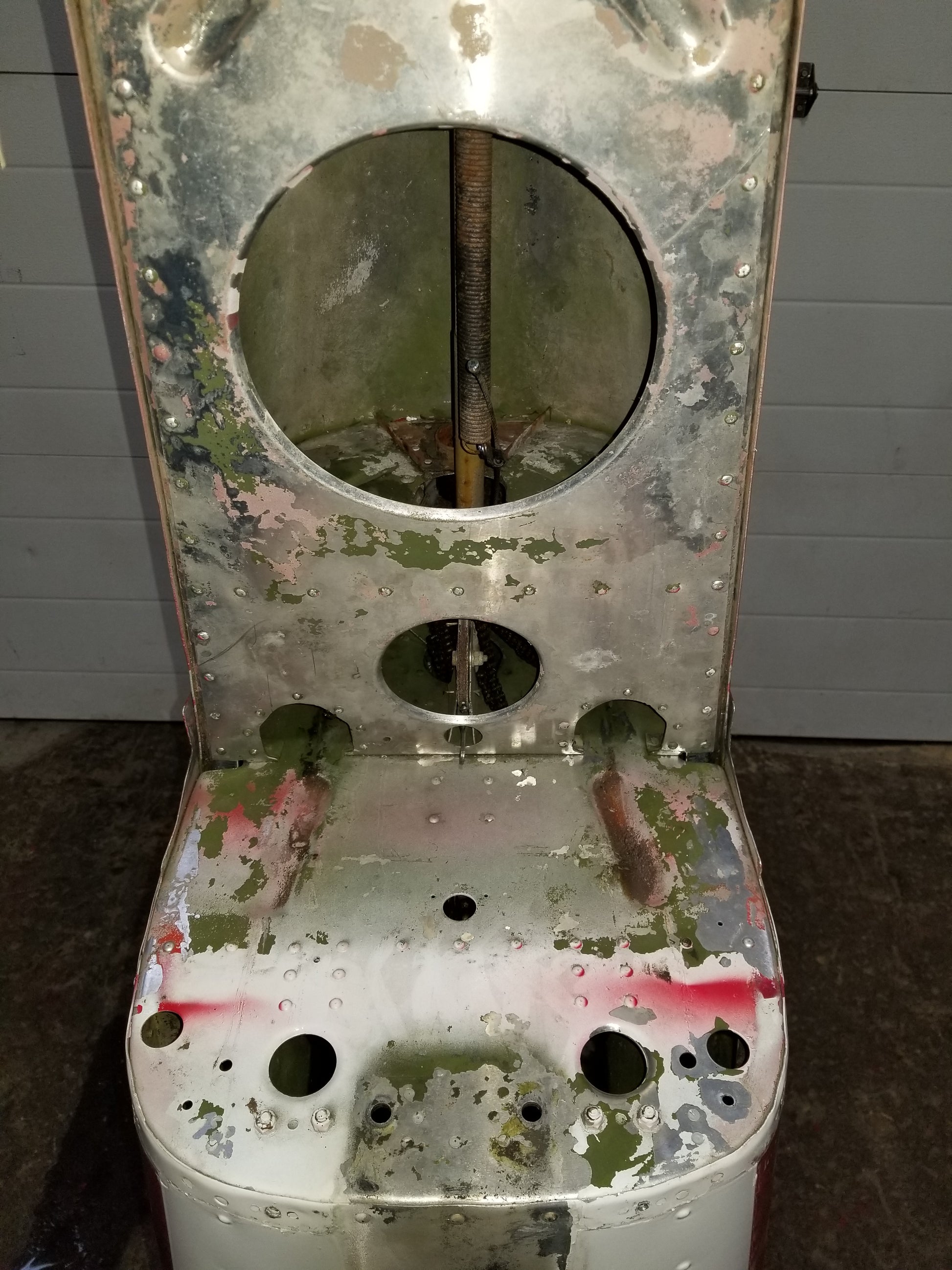

- tailcone bulkhead assy STA. 230.187 - 0712205-14.
- tailcone bulkhead STA. 230.187 - 0712205-10.
- tailgear mounting casting LH 0712305-3.
- tailgear mounting casting RH 0712305-4.
- tailcone reinforcement angle LH 0712207-1.
- tailcone reinforcement angle RH 0712207-2.
- tailcone horizontal bulkhead assy 0712206.
- stabilizer hinge bracket LH 0712302-1.
- stabilizer hinge bracket RH 0712302-2.
- stinger attachment fitting (qnty 2) 0712304-10.
- actuator hinge outboard bracket LH 0712301-1.
- actuator hinge outboard bracket RH 0712301-2.
- actuator hinge inboard bracket LH 0712301-3.
- actuator hinge inboard bracket RH 0712301-4.
- bulkhead STA. 172.00 - 0712202-04.
- upper skin STA. 172.00 to 209.00 - 0712000-38.
- lower skin STA. 172.00 to 209.00 - 0712000-36.
- doubler assy S226-5.
- pulley inboard bracket LH 0712309-5 (with pulley).
- pulley inboard bracket RH 0712309-6.
- pulley outboard bracket LH 0712309-7.
- pulley outboard bracket RH 0712309-8.
- stabilizer seal guide LH 0712303-1.
- stabilizer seal guide RH 0712303-2.

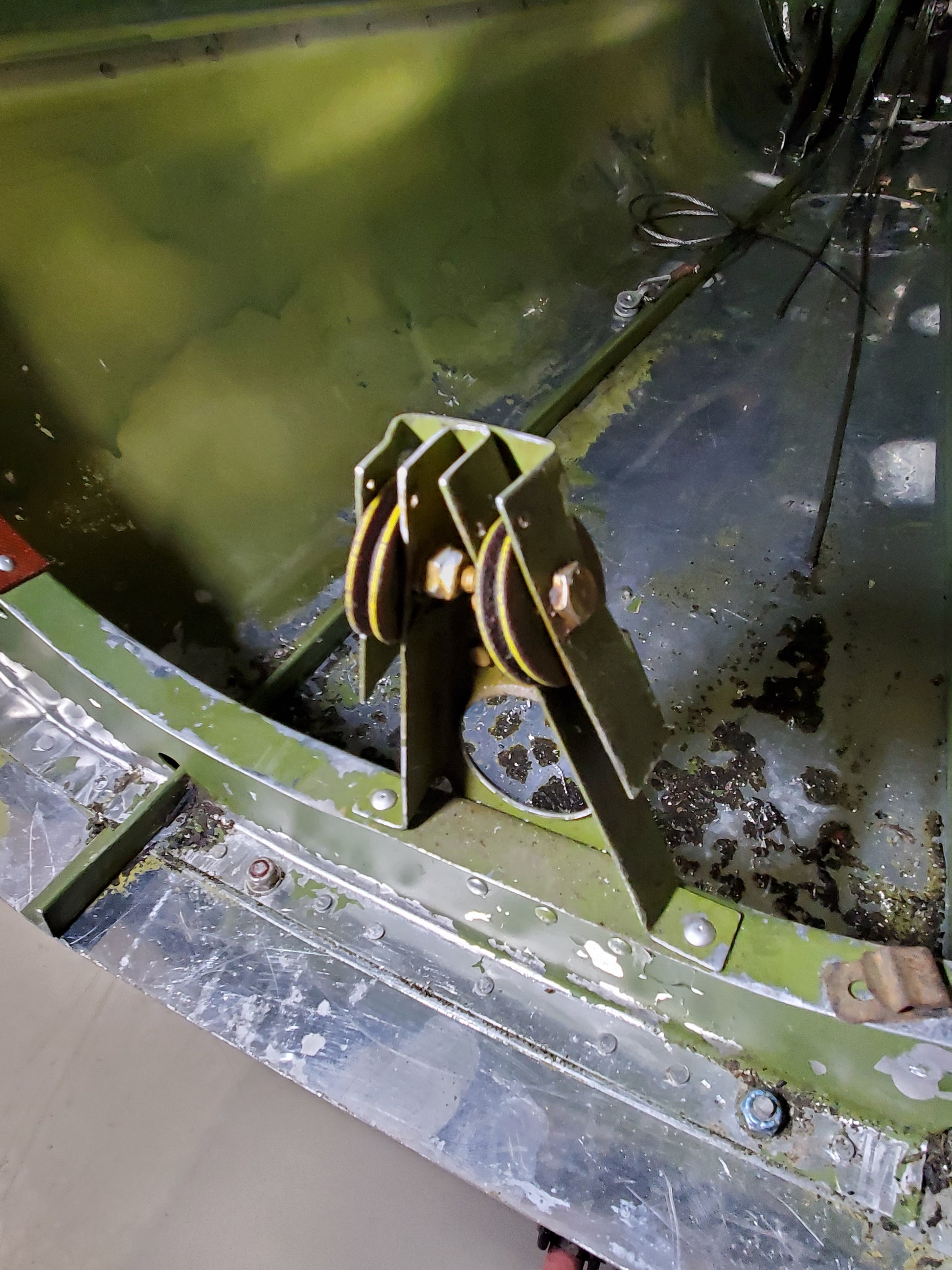

- rudder cable pulley bracket (with pulleys) 0712212.

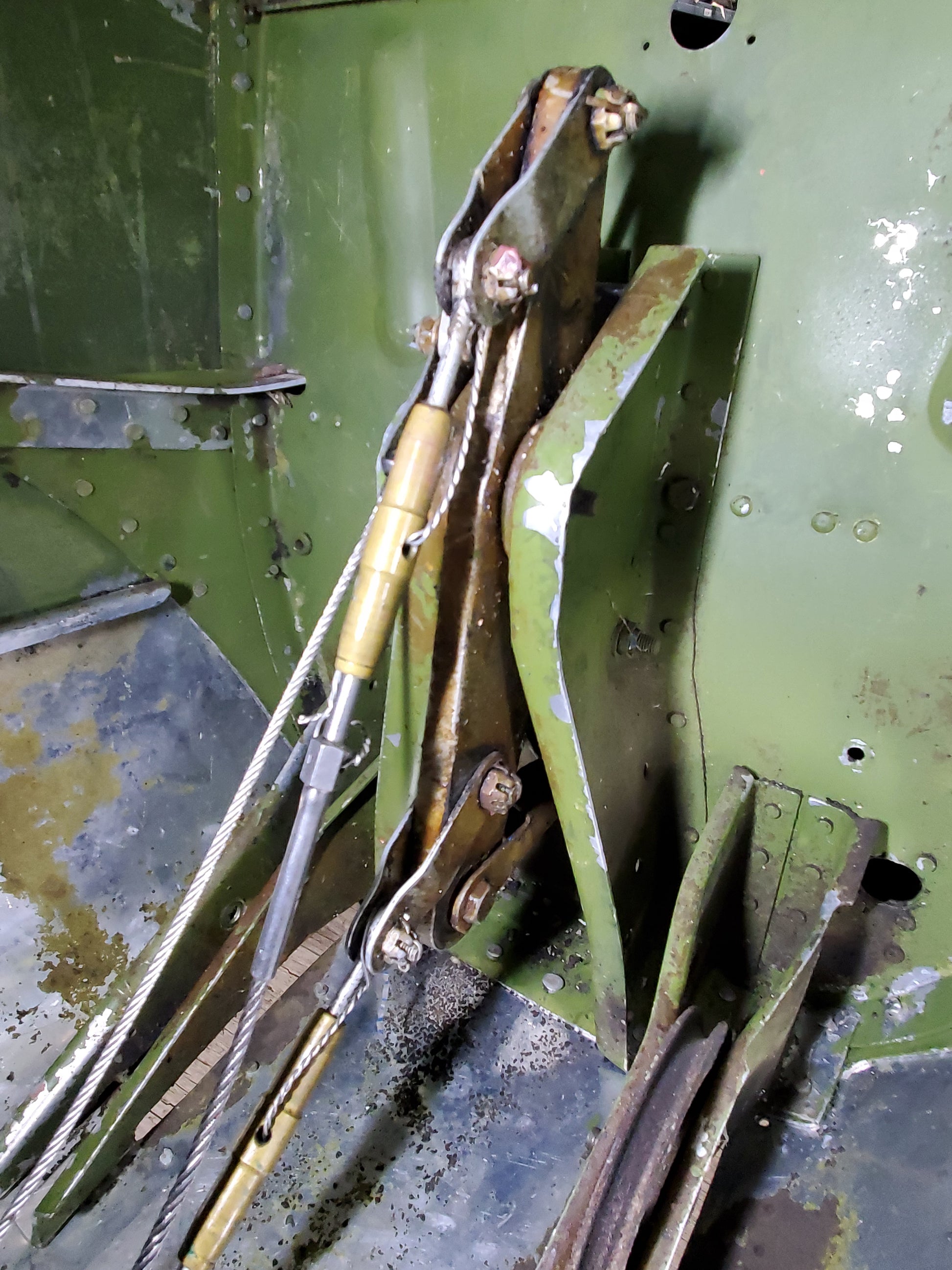

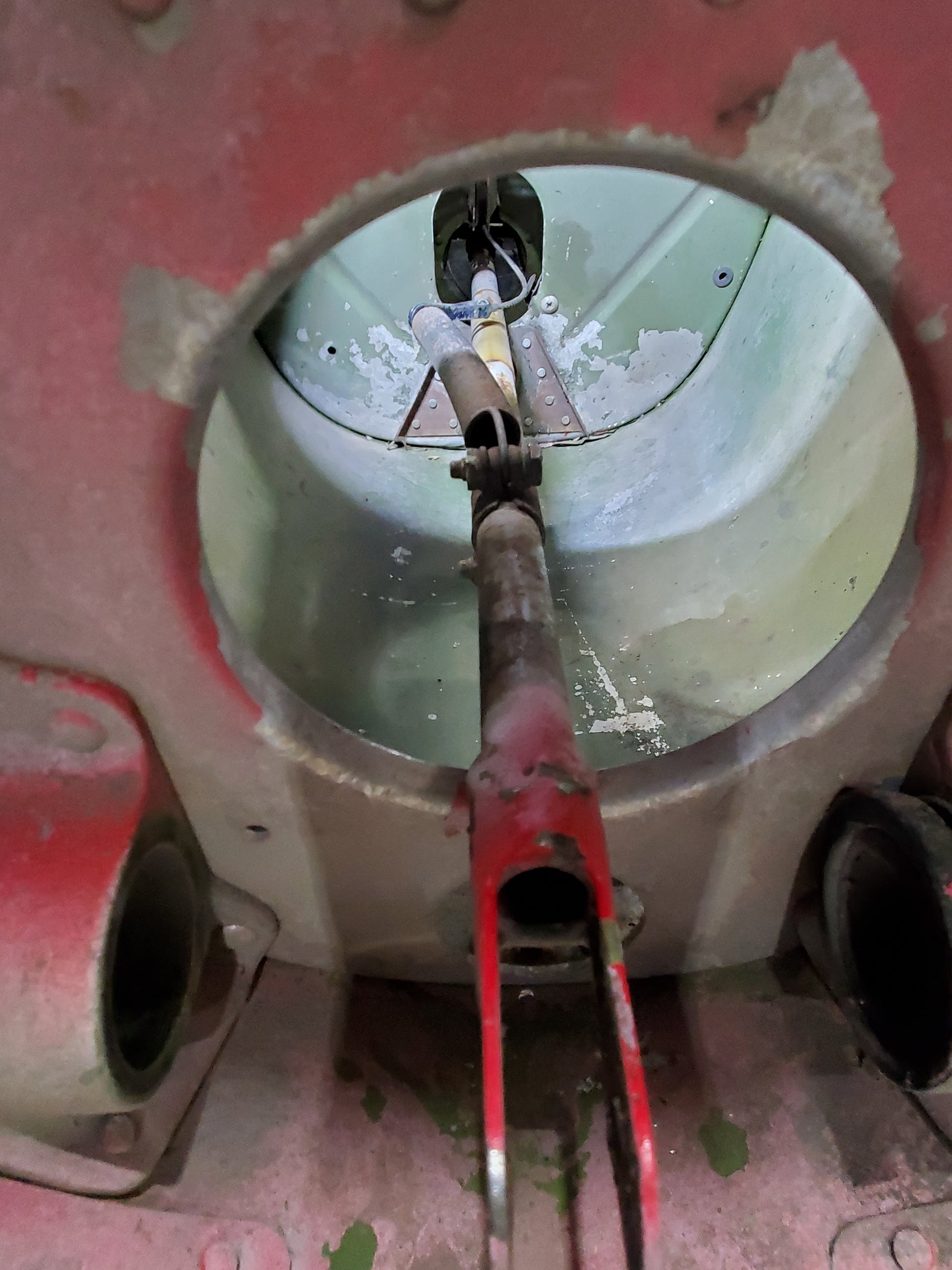

- elevator rear bellcrank assy 0761202-50.

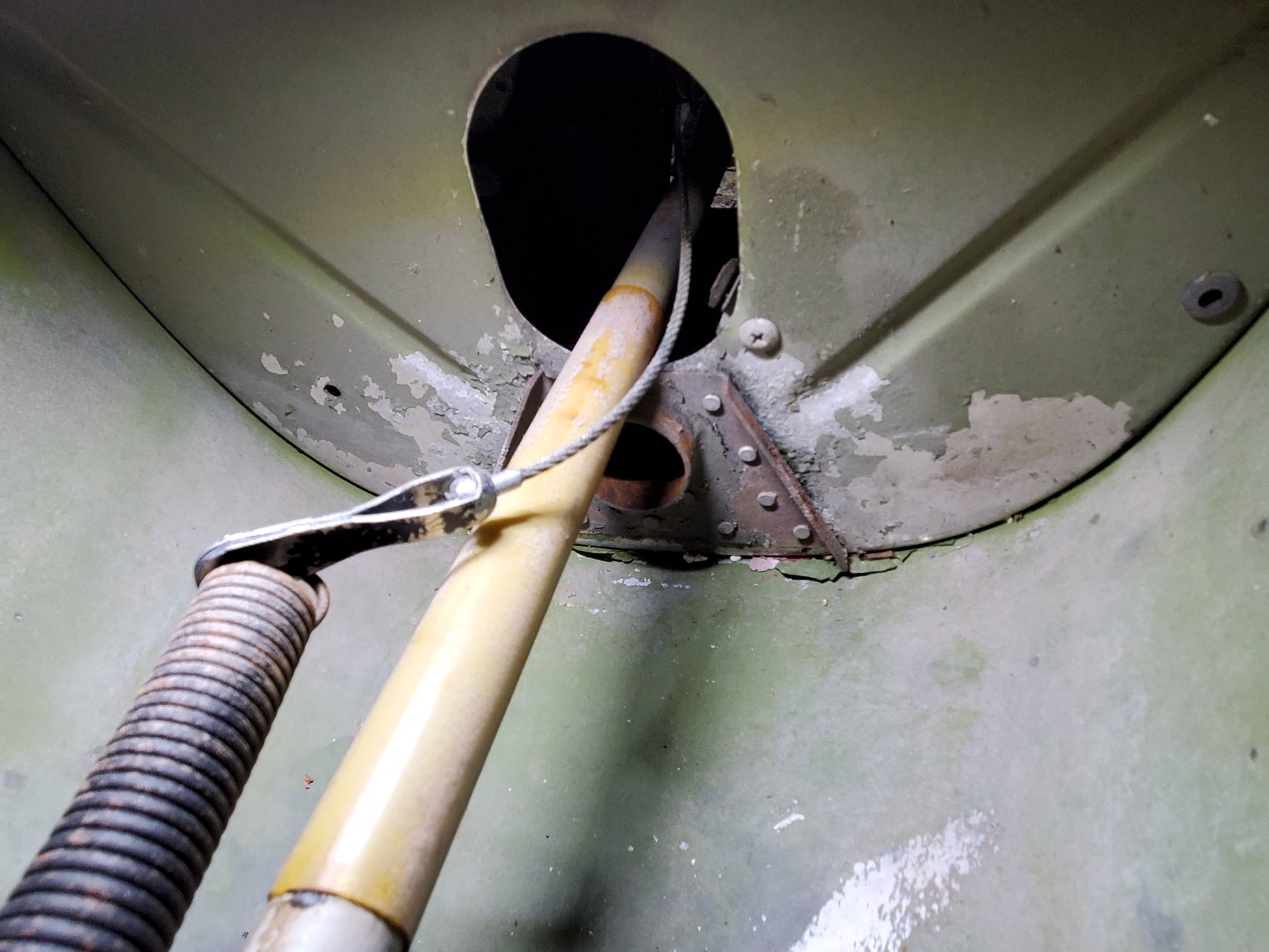

- bellcrank to elevator pylon tube 0510111-10.
- spring 1260016-1.

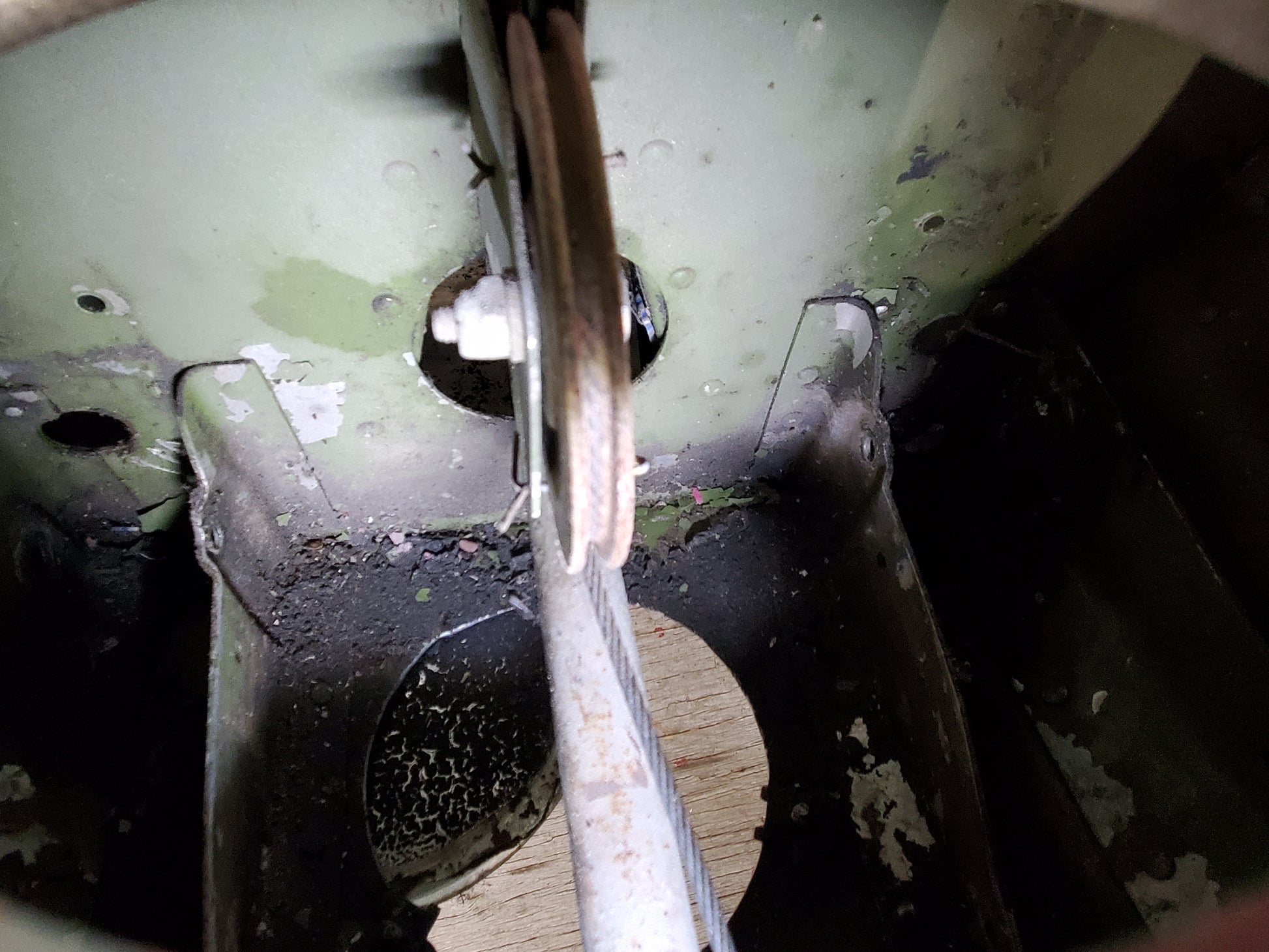

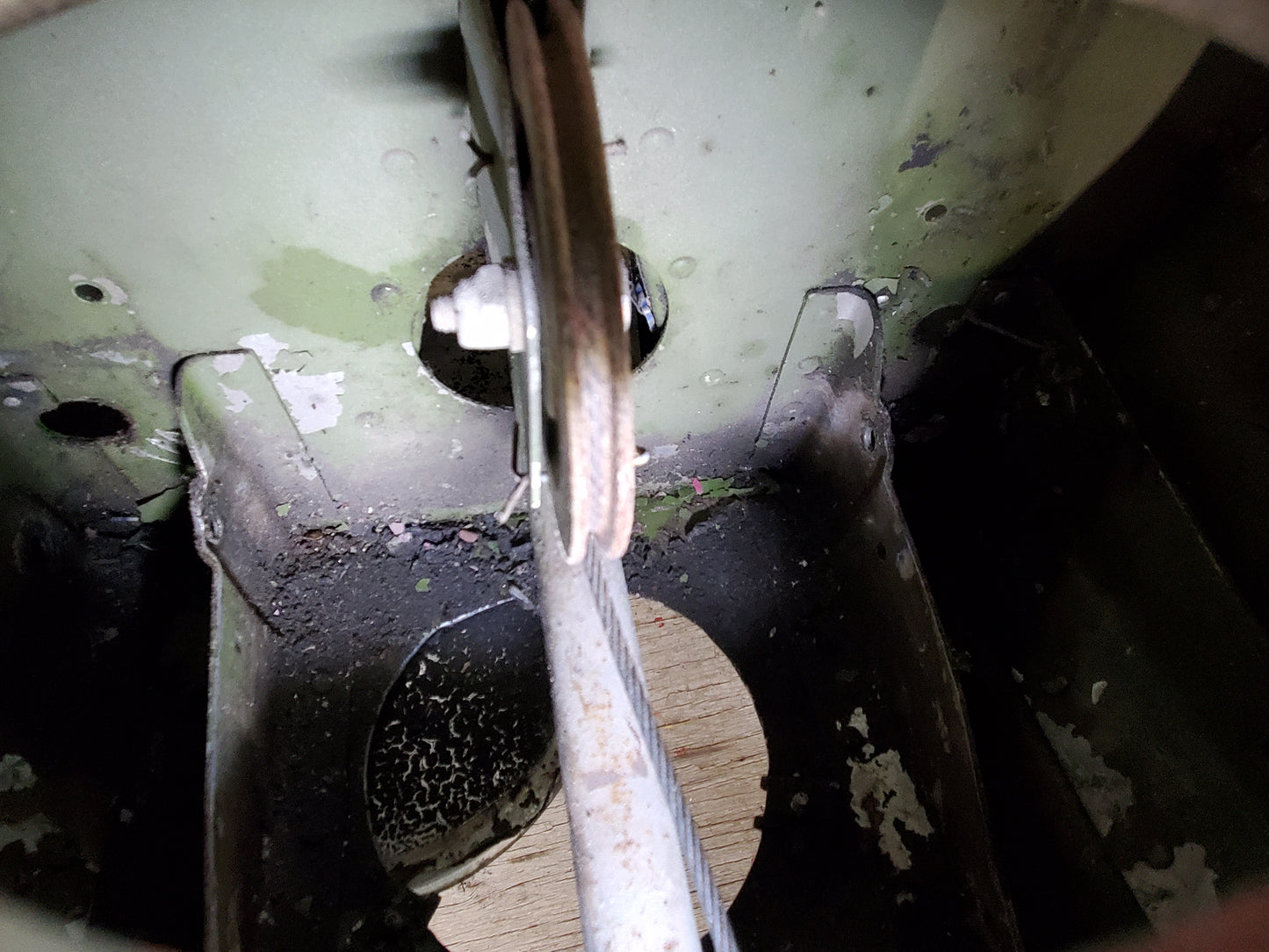

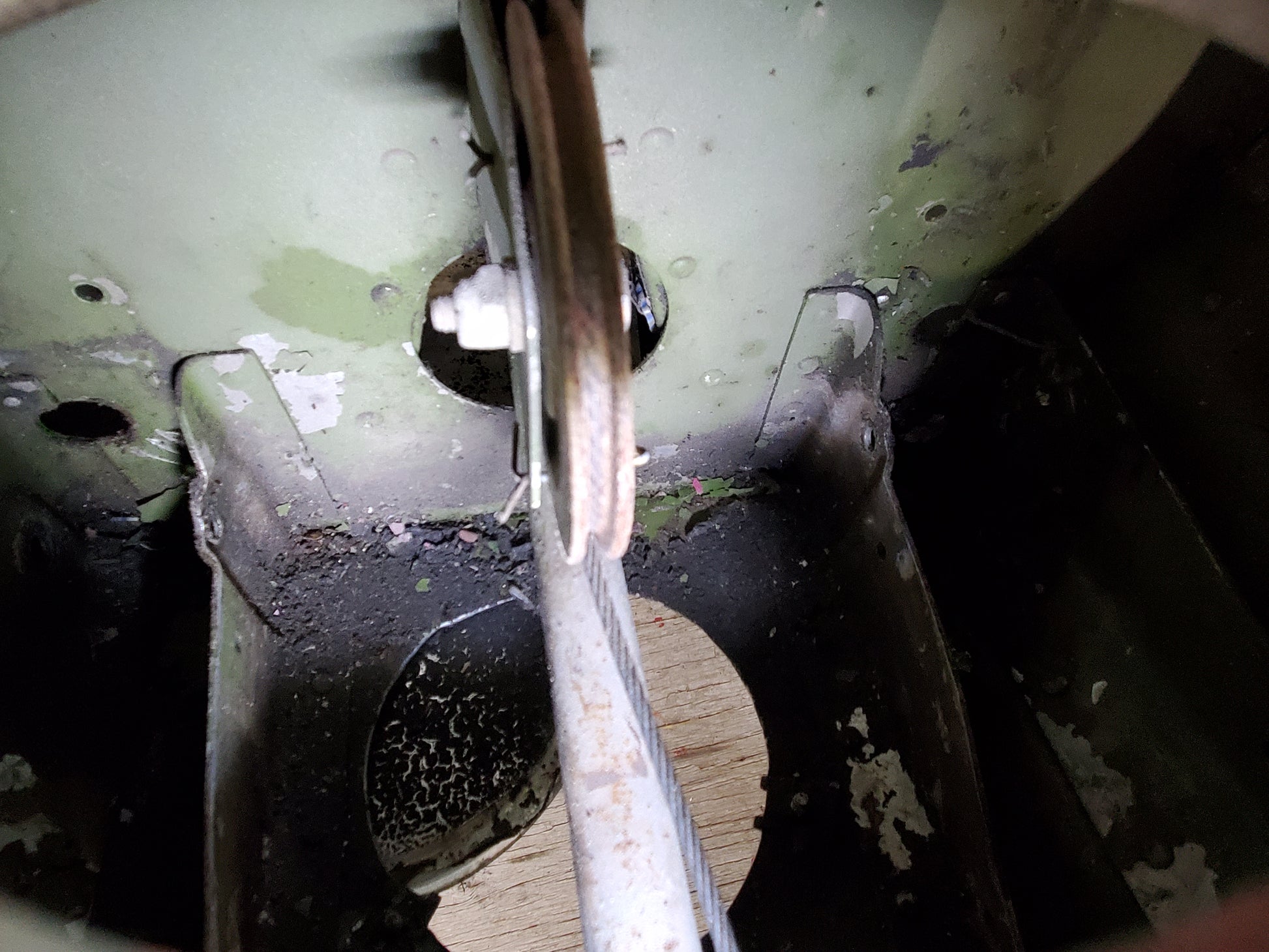

- pulley S378-2.
- elevator trim cable 0510105-82.

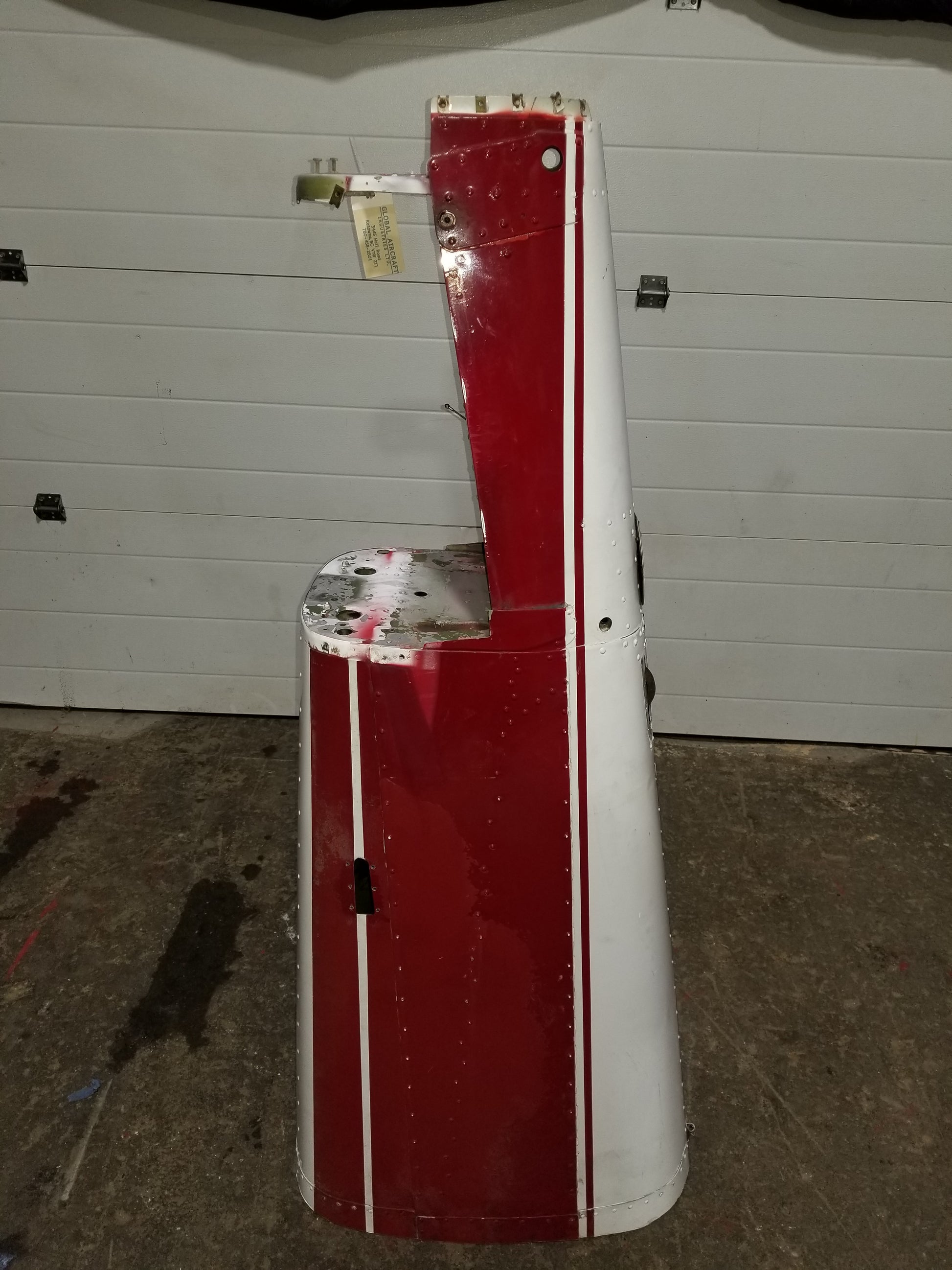

skin and reinforcements cut before STA. 172.00 - intact aft.
Oversize item - please contact for shipping.
